Practical Installation

Introduction to Practical Installation

Practical installation is where instrumentation knowledge is applied in real field conditions. It involves mounting instruments, running cables, installing tubing, terminating wires, connecting transmitters, checking signals, testing loops, and preparing instruments for safe operation.

An instrument may be correctly selected and properly calibrated, but if it is installed poorly, it may still give wrong readings, fail early, or create safety problems. Good installation is therefore one of the most important skills for an instrumentation technician.

Practical installation work must be done carefully, safely, neatly, and according to approved drawings, manufacturer manuals, site procedures, and relevant standards. Loop checks are especially important after installation because they verify the integrity of electrical and instrumentation loops before commissioning.

Why Proper Installation Matters

Proper installation helps instruments work accurately, safely, and reliably.

Good installation helps to:

• Improve measurement accuracy.
• Reduce signal faults.
• Prevent water entry into instruments and junction boxes.
• Reduce vibration damage.
• Prevent impulse-line blockage and leakage.
• Improve cable and tubing protection.
• Reduce electrical noise.
• Support safe maintenance access.
• Prevent incorrect field readings.
• Make troubleshooting easier.
• Improve equipment life.
• Support successful commissioning.

A poor installation can cause wrong readings, unstable signals, calibration failure, plant trips, equipment damage, and unsafe operation.

Common Practical Installation Activities

Instrumentation installation may include:

• Reading drawings and datasheets.
• Identifying instrument tags.
• Mounting field instruments.
• Installing instrument stands and supports.
• Installing impulse tubing.
• Installing cable trays, conduits, and trunking.
• Pulling and dressing instrument cables.
• Installing cable glands.
• Terminating wires in instruments, junction boxes, and panels.
• Earthing and shielding instrument cables.
• Installing junction boxes.
• Installing control valves and accessories.
• Checking instrument air lines.
• Performing point-to-point checks.
• Performing loop checks.
• Supporting commissioning activities.
• Completing installation records.

Each activity must be done correctly because one poor connection, wrong tag, or loose fitting can affect the whole loop.

Installation Documents

Before practical installation begins, technicians should review the correct documents.

Important documents include:

Document	Purpose
P&ID	Shows process equipment, instruments, and control loops
Instrument index	Lists instrument tags and service details
Instrument datasheet	Shows range, process connection, material, signal, and specification
Hook-up drawing	Shows how the instrument is physically installed
Loop diagram	Shows wiring from field instrument to control system
Cable schedule	Shows cable number, route, origin, destination, and cores
Junction box schedule	Shows terminals and field cable connections
Termination drawing	Shows where each wire should be connected
Layout drawing	Shows instrument and panel location
Cause and effect chart	Shows trips, alarms, and shutdown actions
Installation manual	Manufacturer’s instructions for proper installation
Test procedure	Approved method for inspection, loop check, and commissioning

Never install instruments based on guesswork. Drawings and datasheets should always guide the work.

Instrument Tagging and Identification

Every field instrument should have a tag number. The tag identifies the instrument and links it to drawings, datasheets, loop diagrams, PLC/DCS configuration, calibration records, and maintenance history.

Examples of instrument tags:

Tag	Meaning
PT-101	Pressure transmitter
PI-102	Pressure indicator
TT-201	Temperature transmitter
FT-301	Flow transmitter
LT-401	Level transmitter
XV-501	On/off valve
FV-601	Flow control valve

Before installation, the technician should confirm that the physical instrument tag matches the drawing and datasheet.

Installing the wrong instrument in the wrong location can cause serious process and control problems.

Pre-Installation Checks

Before installing any instrument, check the following:

• Correct tag number.
• Correct instrument type.
• Correct range.
• Correct process connection.
• Correct electrical connection.
• Correct signal type.
• Correct material compatibility.
• Correct hazardous-area certification where required.
• Correct accessories.
• No visible physical damage.
• Valid calibration status where required.
• Correct gasket, bolts, fittings, and mounting kit.
• Correct drawing revision.
• Correct work permit and safety approval.

A careful pre-installation check prevents avoidable rework.

Safety During Installation

Instrumentation installation may involve electrical hazards, pressure, height, hot surfaces, chemicals, moving equipment, confined spaces, lifting, cutting, drilling, grinding, and hazardous-area risks.

Safe installation practice includes:

• Obtain required permits before work.
• Wear the correct PPE.
• Use approved tools.
• Confirm isolation before disconnecting equipment.
• Apply Lockout/Tagout where required.
• Depressurise and drain process lines before opening connections.
• Use gas testing where required.
• Avoid working under suspended loads.
• Barricade work areas where needed.
• Use fall protection for work at height.
• Keep the workplace clean and organised.
• Report unsafe conditions immediately.

OSHA’s Lockout/Tagout standard covers servicing and maintenance where unexpected energisation, startup, or release of hazardous energy could injure workers, and it establishes minimum requirements for controlling that hazardous energy.

Instrument Mounting

Instrument mounting means physically fixing the instrument in its correct location.

Good mounting should ensure that the instrument is:

• Secure.
• Accessible.
• Protected from damage.
• Installed in the correct orientation.
• Easy to read where local indication is required.
• Supported properly.
• Free from excessive vibration.
• Away from unnecessary heat exposure.
• Installed according to manufacturer instructions.
• Positioned for safe maintenance access.

Poor mounting can lead to vibration damage, loose connections, difficult maintenance, wrong readings, and early instrument failure.

Instrument Stands and Supports

Instrument stands and supports are used to hold transmitters, junction boxes, manifolds, controllers, indicators, and other field devices.

Good support practice includes:

• Use strong and suitable mounting materials.
• Ensure the stand is firmly fixed.
• Avoid sharp edges.
• Protect against corrosion.
• Position instruments at a safe working height.
• Avoid blocking access routes.
• Avoid mounting instruments where they can be hit by vehicles or materials.
• Allow space for tubing, cable glands, and maintenance.

A well-mounted instrument looks professional and performs better.

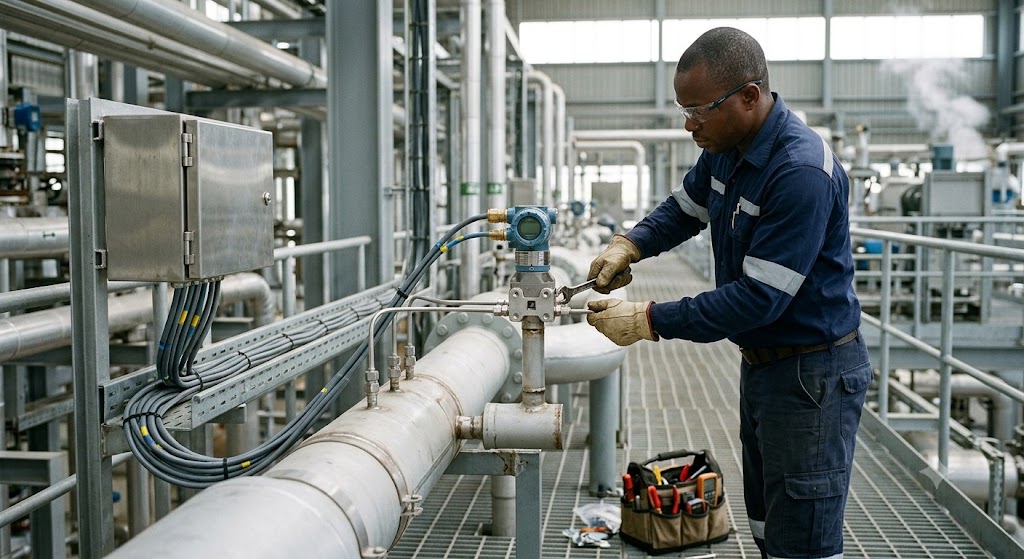

Installing Pressure Transmitters

Pressure transmitters must be installed carefully because pressure measurement can be affected by mounting position, impulse piping, leaks, blockage, trapped gas, trapped liquid, and process temperature.

Good pressure transmitter installation includes:

• Confirm the pressure range and process service.
• Mount the transmitter close to the process where practical.
• Use correct impulse tubing or direct mounting.
• Use a manifold where required.
• Keep impulse lines short where possible.
• Avoid unnecessary bends.
• Provide slope for liquid or gas service where required.
• Avoid trapped air in liquid lines.
• Avoid trapped liquid in gas lines.
• Check high and low pressure sides for differential pressure transmitters.
• Tighten fittings correctly.
• Leak-test before service.
• Protect the transmitter from excessive heat and vibration.

Emerson’s pressure transmitter guidance states that measurement accuracy depends on proper transmitter and impulse-piping installation, and recommends mounting the transmitter close to the process with minimum piping for best accuracy.

Impulse Tubing

Impulse tubing carries process pressure from the tapping point to the transmitter.

Impulse tubing is common in:

• Pressure measurement
• Differential pressure measurement
• DP flow measurement
• DP level measurement

Good impulse tubing practice includes:

• Use correct tubing material.
• Use correct tube size.
• Avoid dents and sharp bends.
• Support tubing properly.
• Keep tubing runs neat and short where possible.
• Use correct fittings.
• Avoid leaks.
• Slope tubing correctly.
• Avoid blockage points.
• Protect tubing from vibration and mechanical damage.
• Label lines where required.

Poor impulse tubing installation can make a good transmitter read incorrectly.

Gas, Liquid and Steam Service Considerations

Impulse-line installation depends on the process fluid.

Service	Installation Consideration
Gas service	Avoid liquid collection in impulse lines
Liquid service	Avoid trapped air or gas pockets
Steam service	Use condensate pots or siphons where required
Dirty service	Consider flushing rings, seals, or remote seals
Corrosive service	Use compatible materials or chemical seals
High-temperature service	Protect transmitter from direct high temperature
Viscous service	Avoid small passages that can block easily

The technician must understand the process service before installing the instrument.

Installing Temperature Instruments

Temperature instruments include thermometers, RTDs, thermocouples, thermowells, and temperature transmitters.

Good installation practice includes:

• Confirm sensor type.
• Confirm thermowell material and size.
• Confirm insertion length.
• Install the thermowell correctly.
• Ensure good sensor contact inside the thermowell.
• Avoid forcing the sensor into a blocked thermowell.
• Use correct extension cable for thermocouples.
• Observe thermocouple polarity.
• Use correct RTD wiring configuration.
• Protect sensor cable from heat and mechanical damage.
• Seal cable entries properly.

Incorrect sensor type, wrong polarity, poor contact, or wrong wiring can cause incorrect temperature readings.

Thermowell Installation

A thermowell protects the temperature sensor from process pressure, flow, corrosion, and mechanical damage.

Good thermowell installation includes:

• Use the correct material for the process.
• Confirm correct thread or flange connection.
• Check gasket compatibility where flanged.
• Install to the required insertion length.
• Avoid mechanical stress.
• Ensure the thermowell is not damaged.
• Confirm there is no leakage after installation.
• Ensure the sensor reaches the bottom or correct measuring area of the thermowell.

A thermowell that is too short, poorly installed, or damaged can cause poor temperature response.

Installing Flow Instruments

Flow instruments must be installed according to the flow-meter type and manufacturer’s recommendation.

Common flow instruments include:

• Orifice plates
• Differential pressure transmitters
• Magnetic flow meters
• Coriolis flow meters
• Ultrasonic flow meters
• Vortex flow meters
• Turbine flow meters
• Rotameters

Good flow-meter installation may require:

• Correct flow direction.
• Correct pipe size.
• Full pipe condition.
• Correct grounding.
• Straight pipe run where required.
• Correct orientation.
• Proper gaskets.
• Proper alignment.
• Avoiding pipe stress.
• Avoiding air pockets.
• Avoiding vibration.
• Correct transmitter configuration.

Flow meters are often sensitive to poor installation. A meter may be accurate in the workshop but inaccurate in the field if installation conditions are wrong.

Installing Magnetic Flow Meters

Magnetic flow meters measure conductive liquid flow.

Good installation includes:

• Use only on conductive liquids.
• Ensure the pipe runs full.
• Install in the correct flow direction.
• Use correct grounding rings or earthing where required.
• Avoid installation at the highest pipe point where air can collect.
• Avoid installation where the pipe may run empty.
• Protect the liner and electrodes.
• Follow straight-run requirements where specified.
• Check cable connections between sensor and transmitter.

A magnetic flow meter installed on an empty or partially filled pipe may give unstable or wrong readings.

Installing Level Instruments

Level instruments are used on tanks, vessels, sumps, silos, and containers.

Common level instruments include:

• Sight glass
• Float switch
• Differential pressure level transmitter
• Radar level transmitter
• Ultrasonic level transmitter
• Guided wave radar
• Capacitance level transmitter
• Vibrating fork switch

Good level installation includes:

• Confirm instrument type and range.
• Install at the correct height.
• Avoid obstructions inside the tank.
• Consider foam, vapour, turbulence, and dust.
• Use correct nozzle size and location.
• Check process connection.
• Confirm density settings where required.
• Protect instrument cables.
• Ensure local display is readable where required.
• Confirm the level reading against actual tank condition.

Different level technologies have different installation requirements, so always follow the manufacturer’s manual.

Installing Radar and Ultrasonic Level Instruments

Radar and ultrasonic level instruments are usually mounted on top of tanks or vessels.

Good installation includes:

• Mount vertically where required.
• Avoid internal obstructions.
• Avoid mounting too close to tank wall.
• Avoid direct filling streams.
• Consider foam, vapour, dust, and turbulence.
• Use correct nozzle height and diameter.
• Configure tank height and range correctly.
• Ensure cable entry is sealed.
• Confirm echo quality during commissioning where available.

Wrong mounting position can cause false echoes and unstable level readings.

Installing Control Valves

Control valves are final control elements used to regulate flow, pressure, temperature, or level.

Good control valve installation includes:

• Confirm valve tag and service.
• Confirm flow direction arrow.
• Check valve size and rating.
• Install correct gasket and bolts.
• Avoid pipe stress on the valve body.
• Provide correct actuator orientation where required.
• Ensure access to positioner, actuator, handwheel, and accessories.
• Connect instrument air properly.
• Connect control signal properly.
• Check fail position.
• Stroke-test the valve.
• Check for air leaks and process leaks.
• Confirm feedback signal where available.

A control valve installed backwards or with poor air supply may fail to control the process properly.

Instrument Air Installation

Instrument air is used for pneumatic actuators, control valves, positioners, air relays, and pneumatic instruments.

Good instrument air practice includes:

• Use clean, dry instrument air.
• Confirm correct supply pressure.
• Use air filter regulators where required.
• Install tubing neatly and securely.
• Avoid tubing kinks and leaks.
• Drain moisture where required.
• Check air fittings.
• Confirm regulator setting.
• Check actuator movement.
• Check valve fail action.

Dirty or wet air can damage positioners, actuators, and pneumatic components.

Cable Installation

Instrument cables carry power, signals, and communication between field devices and control systems.

Good cable installation includes:

• Use the correct cable type.
• Confirm cable number.
• Follow cable schedule.
• Use correct cable route.
• Avoid cable damage during pulling.
• Observe minimum bending radius.
• Avoid excessive pulling tension.
• Separate signal and power cables where required.
• Use cable trays, conduits, or trunking properly.
• Protect cables from heat, oil, chemicals, and sharp edges.
• Label cables at both ends.
• Seal cable entries properly.
• Test cables before termination where required.

Poor cable installation can cause signal faults, communication failure, and insulation damage.

Cable Glands

Cable glands secure cables where they enter instruments, junction boxes, and panels. They also help protect against dust, water, mechanical strain, and hazardous-area risks where applicable.

Good cable-gland practice includes:

• Use the correct gland size.
• Use the correct gland type for armoured or unarmoured cable.
• Use certified glands for hazardous areas where required.
• Tighten correctly without damaging the cable.
• Ensure the outer sheath is properly sealed.
• Maintain earth continuity for armoured cables.
• Use shrouds where required.
• Seal unused cable entries with approved stopping plugs.
• Avoid leaving open holes in instruments or junction boxes.

Pepperl+Fuchs documentation notes that variants with blue cap nuts can identify intrinsically safe circuits, and unused enclosure entries or glands should be closed using appropriate stopping or sealing plugs.

Junction Boxes

A junction box is used to connect field cables to multicore cables or panel wiring. It provides an organised and protected termination point.

Good junction-box installation includes:

• Mount securely.
• Install at an accessible height.
• Use correct enclosure rating.
• Use correct cable glands.
• Seal unused entries.
• Keep terminals neat and labelled.
• Separate signal types where required.
• Maintain shielding and earthing.
• Avoid water entry.
• Provide drip loops where appropriate.
• Close cover properly after work.
• Update terminal schedules.

Water inside a junction box can cause corrosion, short circuits, noisy signals, and intermittent faults.

Cable Termination

Cable termination means connecting wires to the correct terminals.

Good termination practice includes:

• Confirm cable number.
• Confirm wire or core number.
• Use correct terminal drawing.
• Strip insulation carefully.
• Avoid damaging conductor strands.
• Use ferrules where required.
• Tighten terminals properly.
• Use correct screwdriver or torque where specified.
• Keep spare cores safely terminated.
• Label wires clearly.
• Separate shields from signal cores properly.
• Check for loose strands.
• Perform tug check where appropriate.
• Keep termination neat.

A loose terminal can cause intermittent faults that are difficult to find.

Earthing and Shielding

Earthing and shielding are important for safety and signal quality.

Good practice includes:

• Connect protective earth properly.
• Bond metallic enclosures and glands where required.
• Terminate cable shields according to project standard.
• Avoid accidental multiple earth points where not allowed.
• Separate instrument earth and protective earth where specified.
• Keep shield drain wires insulated where required.
• Maintain shield continuity through junction boxes where required.
• Avoid leaving shields loose in panels.

Wrong shielding or poor grounding can create noise, unstable readings, and communication problems.

Intrinsically Safe Installation Awareness

Intrinsic safety is used in hazardous areas to limit electrical energy so that ignition risk is reduced.

In intrinsically safe circuits, technicians must pay attention to:

• Certified instruments.
• Correct barriers or isolators.
• Approved cable type.
• Segregation from non-IS circuits.
• Blue cable or blue identification where used by site standard.
• Correct earthing of barriers.
• Correct glands and enclosure entries.
• Approved drawings.
• Hazardous-area classification.
• No unauthorised modifications.

Improper installation can defeat the protection method. Installation should follow the approved hazardous-area design and applicable standards.

Conduit and Cable Tray Work

Instrument cables may be installed in conduit, cable tray, ladder rack, or trunking.

Good practice includes:

• Support cable tray properly.
• Avoid sharp edges.
• Use covers where required.
• Avoid overfilling.
• Separate instrument cables from power cables where required.
• Use correct conduit fittings.
• Keep conduit routes neat.
• Seal conduit entries where required.
• Provide drainage or sealing in outdoor areas where needed.
• Avoid placing cables where they can be stepped on or damaged.

Cable routing should protect the cable and support future maintenance.

Tubing and Fittings

Instrumentation tubing may be used for impulse lines, instrument air, pneumatic signals, and hydraulic signals.

Good tubing practice includes:

• Use correct tubing material.
• Cut tubing squarely.
• Deburr tube ends.
• Bend tubing smoothly.
• Avoid flattening or kinking.
• Use correct fittings.
• Tighten fittings correctly.
• Support tubing properly.
• Avoid vibration points.
• Protect against mechanical damage.
• Leak-test after installation.

Poor tubing can cause leaks, slow response, wrong measurement, or unsafe release of pressure.

Hook-Up Installation

A hook-up is the physical installation arrangement for an instrument. It shows valves, fittings, tubing, manifolds, supports, glands, and accessories.

Hook-up drawings help technicians install instruments consistently.

A hook-up drawing may show:

• Instrument location.
• Mounting arrangement.
• Process connection.
• Isolation valve.
• Manifold.
• Drain or vent valve.
• Tubing route.
• Cable gland.
• Junction box connection.
• Support details.
• Material requirements.

The technician should install according to the approved hook-up drawing, not personal preference.

Field Instrument Wiring

Field instrument wiring depends on the instrument type.

Examples:

Instrument	Common Wiring
Two-wire transmitter	Same two wires carry power and 4–20 mA signal
Four-wire transmitter	Separate power and signal wiring
RTD	Two-wire, three-wire, or four-wire resistance wiring
Thermocouple	Positive and negative thermocouple extension cable
Solenoid valve	Digital output supply and return
Limit switch	Digital input contact wiring
Positioner	4–20 mA input, feedback, and air supply
HART device	4–20 mA loop with HART communication capability

Always confirm polarity, terminal numbers, voltage, and signal type before energising.

Panel Termination

Panel termination connects field cables to terminal blocks, marshalling cabinets, PLC/DCS input modules, relays, barriers, or isolators.

Good panel termination includes:

• Follow terminal drawings.
• Confirm cable number and core number.
• Keep wires neat.
• Use ferrules where required.
• Separate power and signal wiring.
• Maintain shield termination.
• Check terminal tightness.
• Label each wire.
• Avoid exposed copper.
• Keep trunking covers in place.
• Update drawings if changes are approved.

Panel work should be neat because poor panel termination makes troubleshooting difficult and unsafe.

Point-to-Point Check

A point-to-point check confirms that each wire or core is connected from the correct starting point to the correct destination.

Example:

A wire from pressure transmitter PT-101 terminal positive should connect to junction box terminal 5, then to marshalling cabinet terminal 22, and then to PLC analog input channel AI-01.

Point-to-point checks help find:

• Wrong termination
• Open circuit
• Crossed wires
• Wrong terminal
• Wrong cable number
• Poor continuity
• Short circuit

Point-to-point checking should be done before loop commissioning.

Loop Check

A loop check confirms that the full instrument loop works from field device to control system and, where applicable, from control system back to final control element.

Loop checks may verify:

• Correct instrument tag.
• Correct wiring.
• Correct polarity.
• Correct signal response.
• Correct PLC/DCS channel.
• Correct HMI display.
• Correct scaling.
• Correct alarm response.
• Correct output action.
• Correct valve movement.
• Correct documentation.

ISA’s ANSI/ISA-62382 standard provides guidance for verifying electrical and instrumentation loops after installation and before cold commissioning.

Loop Check Example

A pressure transmitter is ranged from 0 to 10 bar and sends a 4–20 mA signal to the control system.

During loop check:

Simulated Signal	Expected Control Room Reading
4 mA	0 bar
12 mA	5 bar
20 mA	10 bar

If the control room shows 0 to 100 bar instead of 0 to 10 bar, the issue may be wrong scaling, wrong range, or wrong configuration.

Loop Check for Digital Signals

Digital signals are on/off signals.

Examples:

• Level switch
• Pressure switch
• Limit switch
• Emergency stop contact
• Motor running feedback
• Solenoid valve output

During loop check, the technician confirms that the field state appears correctly in the PLC, DCS, or HMI.

Example:

Field Condition	Expected Control System Status
Switch open	OFF / inactive
Switch closed	ON / active
Valve open feedback active	Valve open indication
Motor running contact active	Motor running indication

Wrong digital status can cause alarms, trips, or wrong machine operation.

Loop Check for Analog Signals

Analog loop checks verify the relationship between field signal and engineering value.

Examples:

• 4–20 mA pressure transmitter
• 4–20 mA level transmitter
• 0–10 V actuator feedback
• RTD temperature input
• Thermocouple input
• Analog output to valve positioner

The technician should check several points, not only one point.

Common check points:

• 0%
• 25%
• 50%
• 75%
• 100%

This confirms scaling across the range.

Loop Check for Control Valves

A control valve loop check confirms that the valve responds correctly to the control signal.

Common checks include:

• Confirm valve tag.
• Confirm air supply.
• Confirm positioner signal.
• Stroke valve from 0% to 100%.
• Check actual valve movement.
• Confirm feedback signal.
• Check fail position.
• Check open and close direction.
• Confirm control room indication.
• Check for air leaks.
• Confirm handwheel is disengaged where required.

A valve that moves opposite to command can create serious process problems.

Commissioning Support

Commissioning is the process of testing and preparing systems for operation.

Instrumentation technicians may support commissioning by:

• Checking field installation.
• Performing loop checks.
• Calibrating instruments.
• Simulating signals.
• Stroke-testing valves.
• Checking alarms.
• Checking trips.
• Checking interlocks.
• Confirming HMI readings.
• Supporting functional tests.
• Correcting punch-list items.
• Updating records.

Commissioning should follow approved procedures and involve communication between instrumentation, electrical, mechanical, operations, and safety teams.

Punch List

A punch list is a list of incomplete, incorrect, or defective items found during inspection or commissioning.

Common punch-list items include:

• Missing instrument tag.
• Loose cable gland.
• Missing cable label.
• Wrong terminal connection.
• Unsealed cable entry.
• Instrument mounted in wrong orientation.
• Missing earth connection.
• Leaking tubing fitting.
• Damaged instrument cover.
• Wrong range setting.
• Wrong HMI scaling.
• Valve not stroking fully.
• Missing calibration certificate.

Punch-list items should be corrected and closed with proper evidence.

Installation Quality Checks

Quality checks help confirm that installation work is complete and acceptable.

Checks may include:

• Instrument correctly mounted.
• Tag number correct and visible.
• Cable number correct.
• Glands properly tightened.
• Unused entries sealed.
• Cable shield terminated correctly.
• Tubing leak-free.
• Junction box clean and dry.
• Wires terminated correctly.
• Panel terminals tight.
• Instrument range confirmed.
• Calibration completed.
• Loop check completed.
• Drawings updated.
• Records signed.

Quality work prevents future breakdowns.

Installation Records and Documentation

Good documentation proves that installation work has been completed and tested.

Documents may include:

• Installation checklist
• Inspection report
• Calibration certificate
• Loop check sheet
• Point-to-point check sheet
• Punch-list report
• As-built drawing markups
• Cable test report
• Valve stroke test report
• Instrument datasheet
• Work permit closeout
• Commissioning handover record

If work is not documented, it may be difficult to prove that it was properly completed.

Common Installation Faults

Fault	Possible Cause
Instrument gives no signal	Wrong wiring, no power, open circuit, failed transmitter
Reading is unstable	Loose terminal, poor shielding, vibration, moisture
Reading is wrong	Wrong range, wrong scaling, poor impulse-line installation
Pressure transmitter reads slowly	Blocked impulse line or poor tubing layout
Temperature reading wrong	Wrong sensor type, wrong polarity, poor thermowell contact
Flow reading unstable	Poor meter installation, empty pipe, air bubbles
Level reading wrong	Wrong mounting, foam, obstruction, wrong configuration
Control valve does not move	No air supply, wrong signal, stuck valve, positioner fault
Junction box faults	Water ingress, loose terminals, poor gland sealing
Communication failure	Wrong cable, wrong address, poor shielding, wrong termination

A good technician traces the fault logically instead of guessing.

Troubleshooting After Installation

After installation, faults may appear during testing or commissioning.

A practical troubleshooting process includes:

• Confirm instrument tag and location.
• Confirm drawing revision.
• Check power supply.
• Check wiring and polarity.
• Check cable continuity.
• Check terminal tightness.
• Check cable shields and earth.
• Check process connection.
• Check impulse tubing or air tubing.
• Check instrument configuration.
• Check calibration.
• Check control system scaling.
• Check HMI display.
• Check alarms and diagnostics.
• Document the fault and correction.

Do not blame the instrument before checking the complete installation.

Real-Life Scenario

A new pressure transmitter is installed on a pipeline. During loop check, the field transmitter shows pressure, but the control room display remains at zero.

The technician checks the loop and finds that the transmitter is powered. The signal is measured at the transmitter terminals but not at the marshalling cabinet. A point-to-point check reveals that the field cable was terminated on the wrong junction box terminal.

The problem was not the transmitter. It was a wiring and termination error. After correcting the termination, the control room display responds correctly.

Common Beginner Mistakes

Avoid these mistakes:

• Installing an instrument without checking the tag.
• Using an old drawing revision.
• Ignoring the manufacturer’s manual.
• Mounting instruments where they cannot be accessed safely.
• Leaving cable entries open.
• Mixing signal and power cables carelessly.
• Forgetting cable shielding and earthing requirements.
• Overtightening or undertightening fittings.
• Leaving impulse tubing unsupported.
• Installing flow meters in the wrong direction.
• Wiring transmitters with wrong polarity.
• Forgetting to seal unused junction-box entries.
• Skipping point-to-point checks.
• Skipping loop checks.
• Failing to update documentation.

What an Instrumentation Technician Should Never Do

An instrumentation technician should never:

• Install an instrument without checking the datasheet and drawing.
• Open process connections without isolation and depressurisation.
• Work on live circuits without authorisation and proper controls.
• Leave cable glands loose.
• Leave unused entries open.
• Hide wiring errors.
• Force cables into terminals carelessly.
• Leave loose wire strands exposed.
• Install a transmitter with high and low sides reversed.
• Install a control valve without checking flow direction.
• Bypass installation checks to save time.
• Hand over a loop without proper testing and documentation.
• Make undocumented wiring changes.

Quick Recap

Practical installation is a key part of instrumentation work. It includes mounting instruments, installing tubing, pulling cables, fitting cable glands, wiring junction boxes, terminating panels, checking signals, performing point-to-point checks, and completing loop checks. Good installation improves accuracy, reliability, safety, maintenance access, and commissioning success. Poor installation can cause wrong readings, unstable signals, water ingress, leaks, communication failure, and unsafe operation. A professional instrumentation technician must follow drawings, datasheets, manufacturer instructions, safety procedures, quality checks, and documentation requirements before handing any loop over for service.
